Graphs with Graphite module of Icinga

Introduction

IML - we are the Institute for Medical Education at university in Bern, Switzerland.

We use Icinga graphite module to show performance data.

The checks are available in a sister repository.

License

• Licence: GNU GPL 3.0
• Source:
  • Graphs (Graphite): https://git-repo.iml.unibe.ch/iml-open-source/icinga-graphite-templates
  • Checks: https://git-repo.iml.unibe.ch/iml-open-source/icinga-checks

Installation

You need the graphite modul of icingaweb2 that points to a graphite service (Graphite can run on another server than Icinga).

(1)

On the Icinga server put the wanted ini into the folder /etc_incingaweb2/modules/graphite/templates/

(2)

Inside an ini file have a look to the lines

check_command = "..."

They need to match the name of a service (NOT the name of a check script) to apply the rules for a graph.

Modified templates

apache-requests.ini ceph-diskfree.ini ceph.ini cpu.ini default.ini disk-io.ini disk-ticks.ini haproxy-status.ini hostalive.ini load.ini memory.ini netio.ini netstat.ini response-time.ini update-available.ini

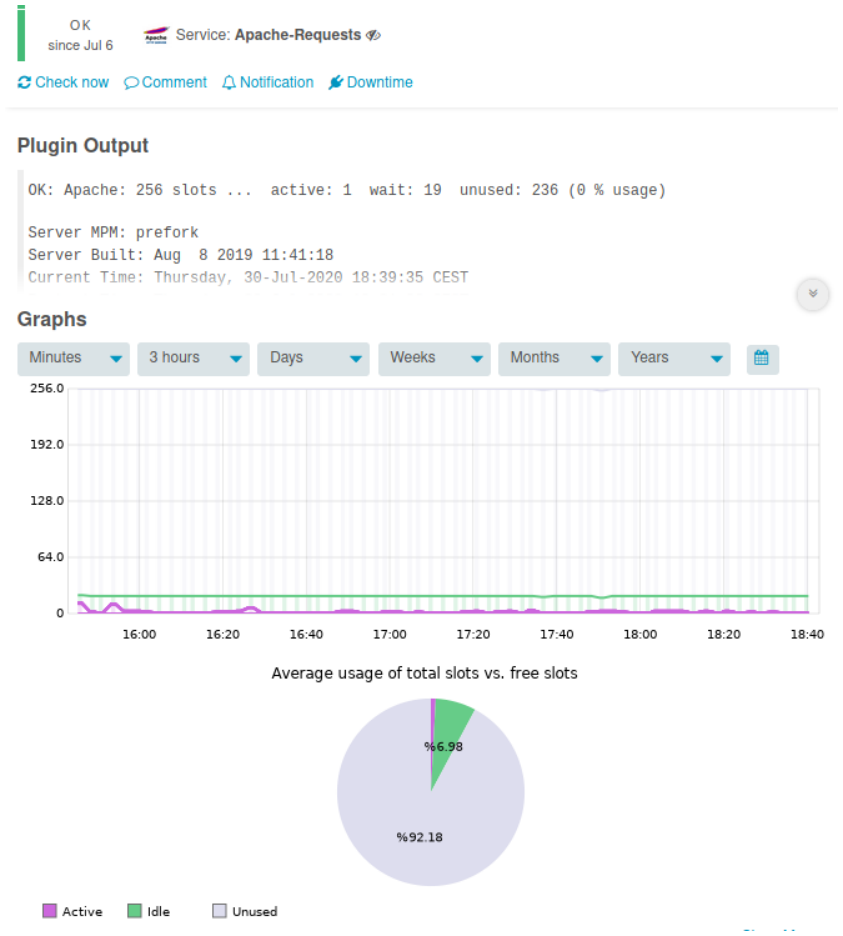

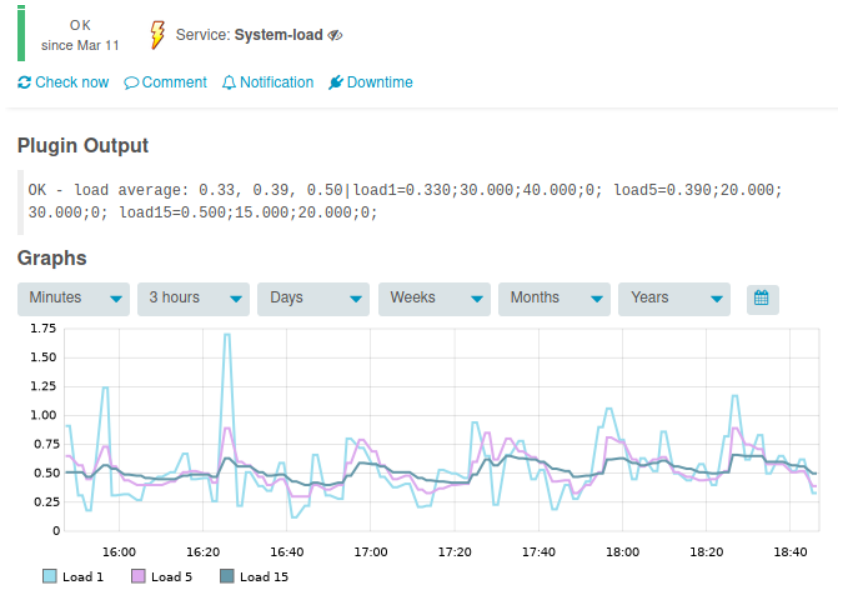

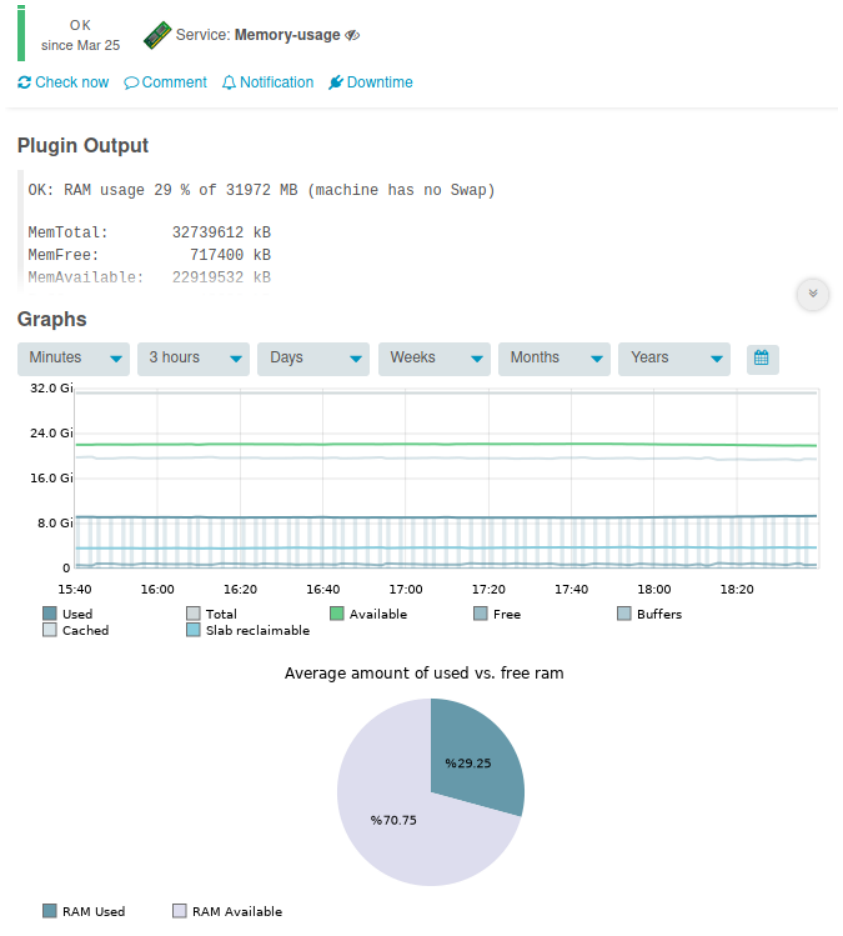

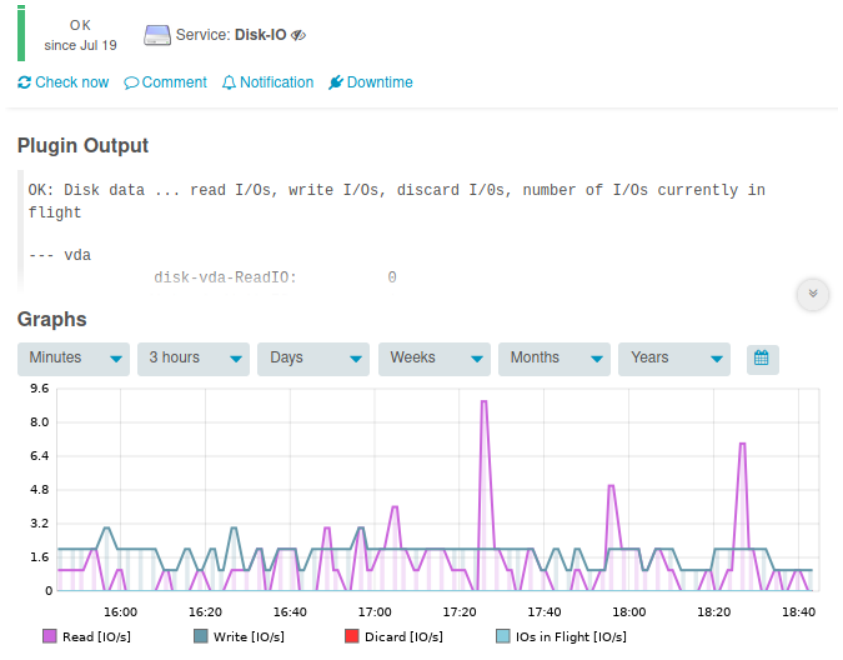

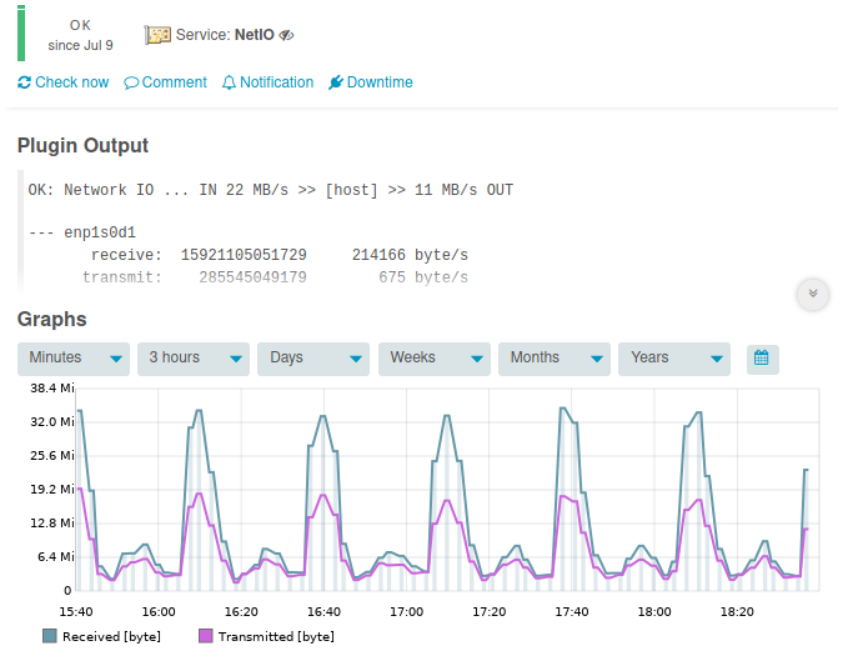

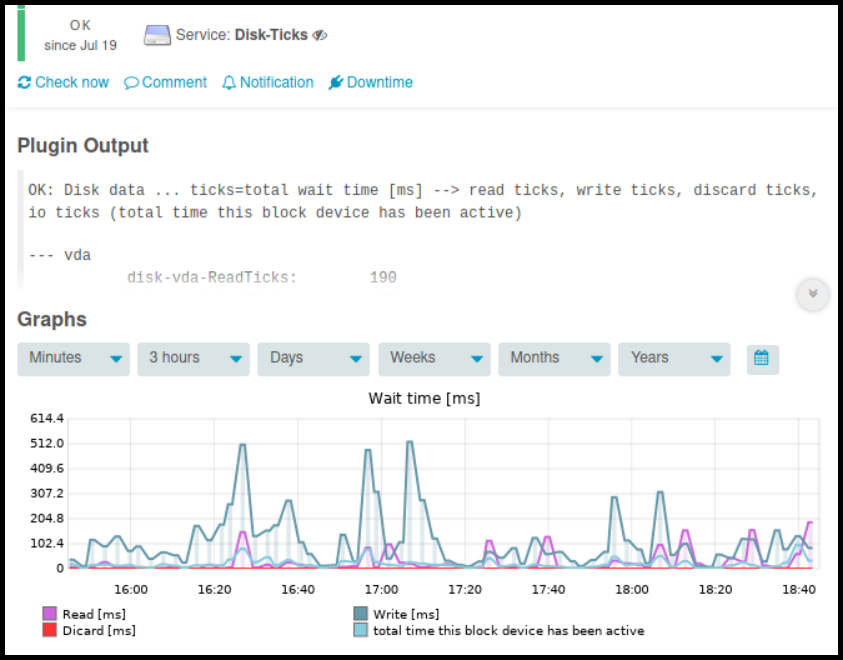

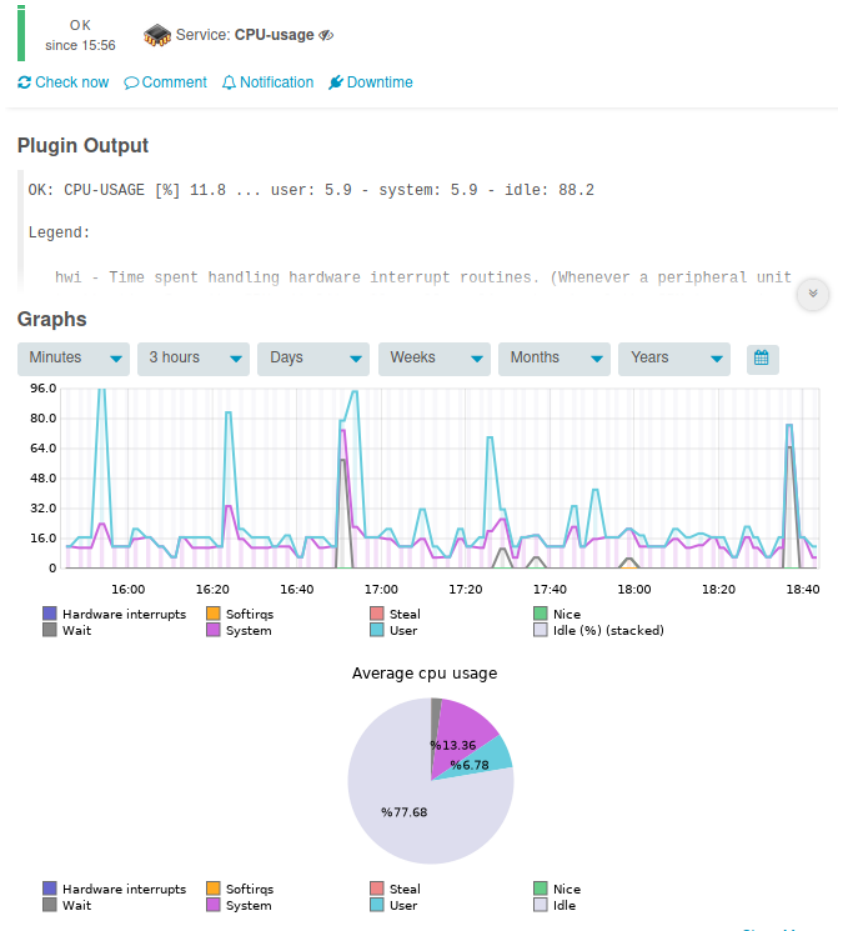

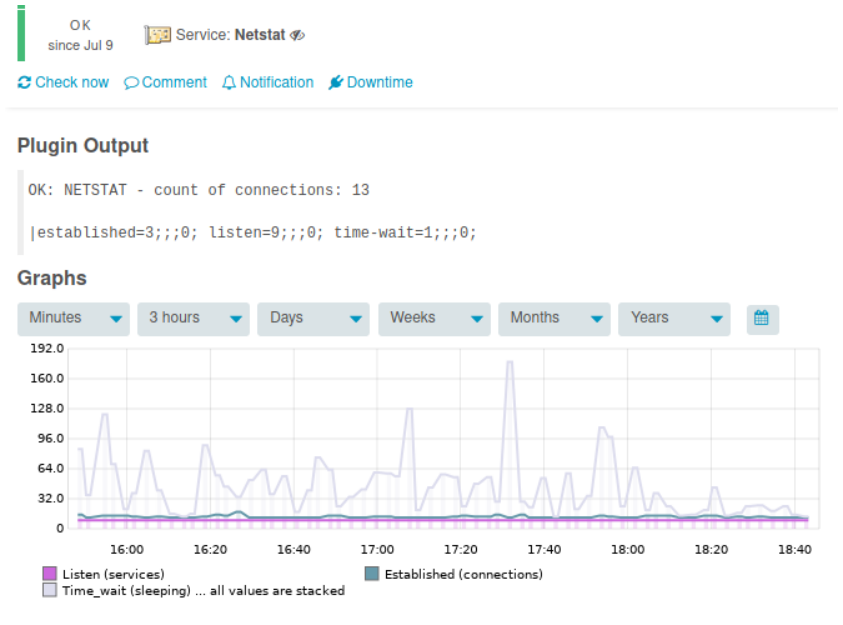

Gallery
